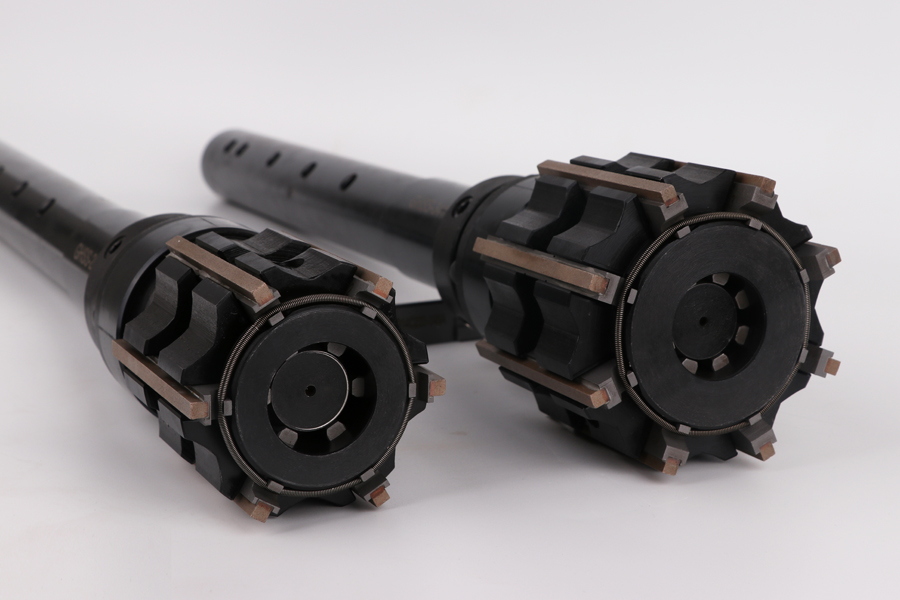

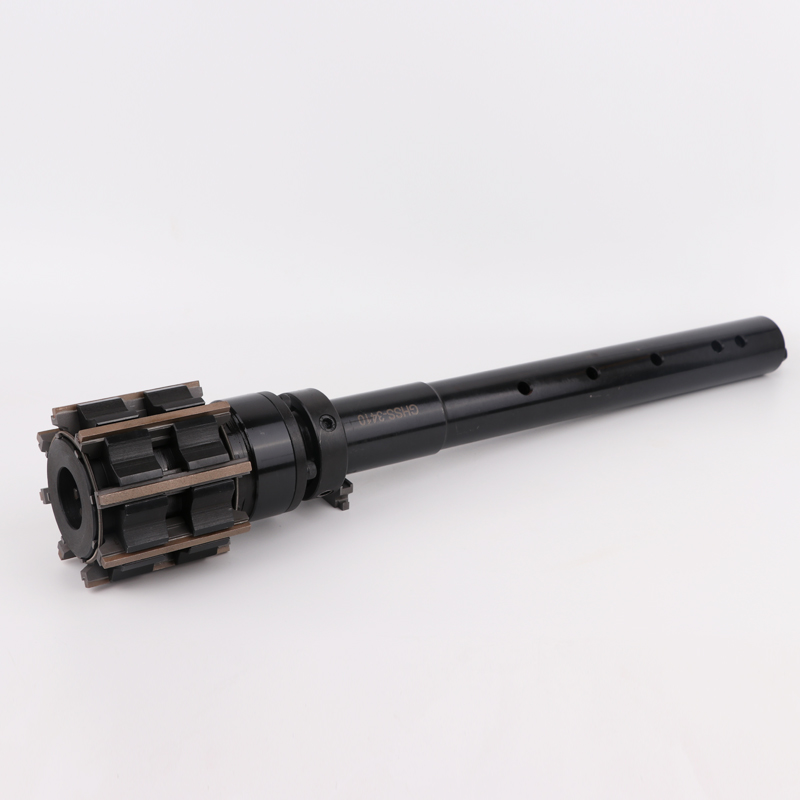

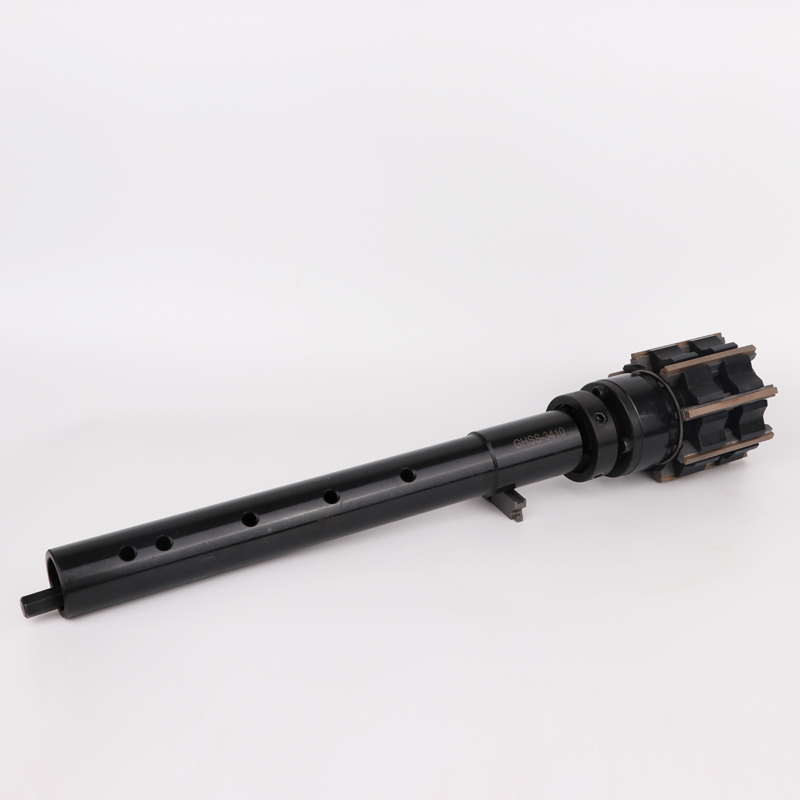

GHSS-3410 Hone Head for Sunnen Honing Machines
Diameter Range: 87,12 – 112,27 mm (3.43 – 4.42 in.)
| Diameter (mm) | Diameter (Inch) | Stone Holder 8 Holders/Set |
Abrasive Grade Suffix |
| 87,12 - 91,95 | 3.43 - 3.62 | G14C233-7-S8* | GH233 |
| 89,92 - 94,49 | 3.54 - 3.72 | G14C233-4-S8 | GH233 |
| 93,98 - 98,55 | 3.70 - 3.88 | G14C233-8-S8* | GH233 |
| 96,27 - 100,84 | 3.79 - 3.97 | G14C233-3-S8 | GH233 |
| 100,84 - 105,41 | 3.97 - 4.15 | G14C233-9-S8* | GH233 |
| 102,62 - 107,19 | 4.04 - 4.22 | G14C233-6-S8 | GH233 |
| 107,70 - 112,27 | 4.24 - 4.42 | G14C233-10-S8* | GH233 |
GHSS-3410/4410/5410/6410 are kits comprised of (1) hone head & (4) Stone Holder sets (marked "*").“H” suffix represents the hone head without stoneholder sets.
Used on Honing Machines: Sunnen SV10, SV20, SV15, SV-30 CV-616, CK21 honing machines.

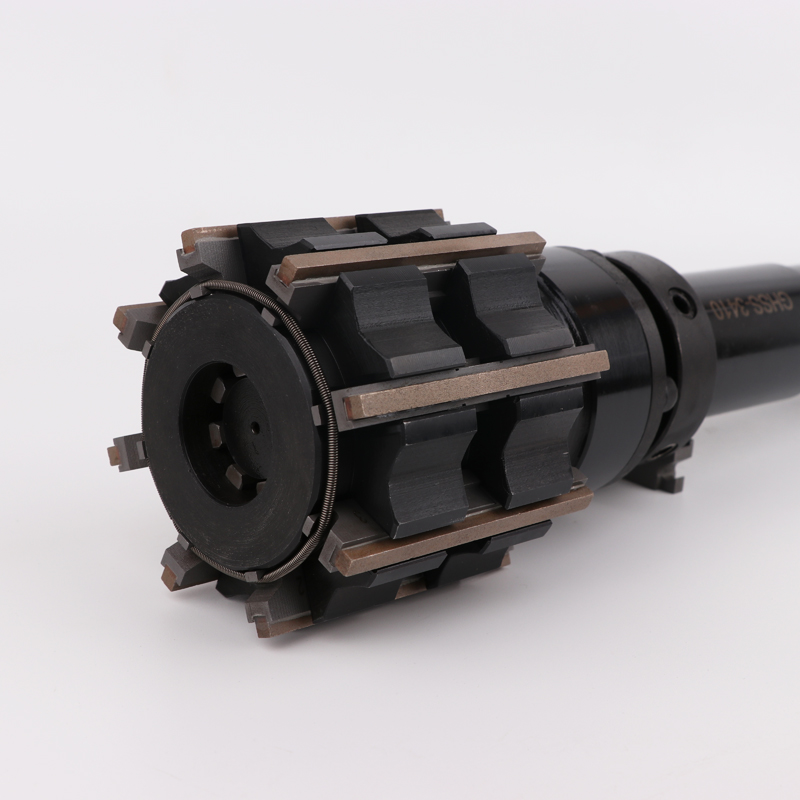

The GHSS Series Honing tools were developed for use in Sunnen or other brand Vertical Honing Machines. The GHSS-3410 hone head consist four sets of eight spring loaded stoneholders, which utilize Diamond or CBN honingn stones.
